LouverX™ Smart PergolaArchitectural Strength.
Architectural Strength.Intelligent Climate Control. Advanced Water Engineering
LouverX™ Smart Pergola by EGC Outdoor Building Systems is a heavy-duty motorized aluminum louvered pergola engineered for four-season performance in demanding climates.
Built around reinforced 6" x 6" (150mm) structural posts with 2.5mm wall thickness, oversized beams(240*177*2.5mm), and a dual-path Blade Diversion Drainage System™, LouverX™ sets a new standard in strength, weather protection, and refined outdoor living.

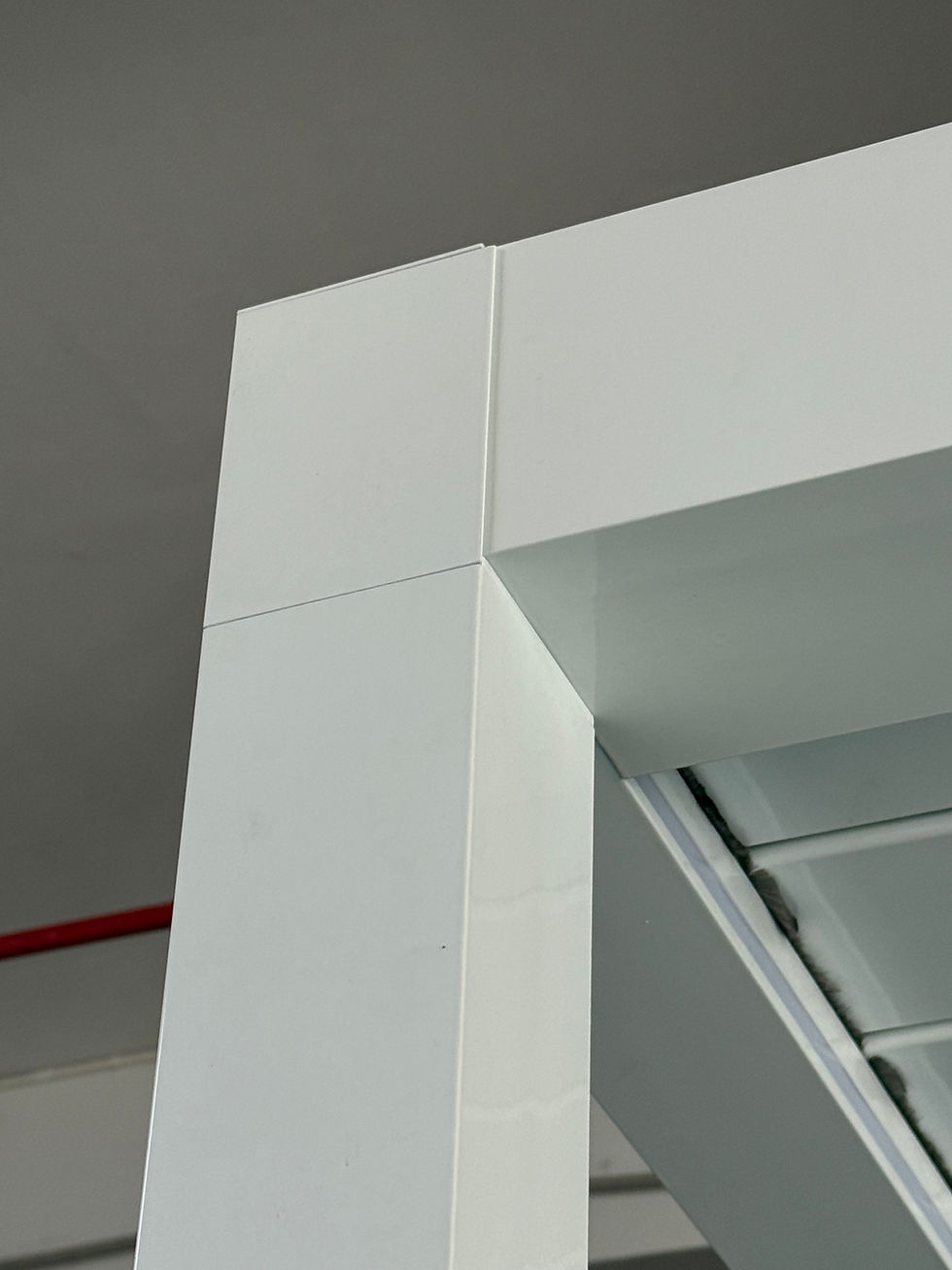

 6" x 6" (150mm) Aluminum Posts with 2.5mm Wall Thickness – Commercial Grade Strength. Unlike standard residential pergolas using 4" posts, LouverX™ is built on a true architectural column system. Superior wind resistance Enhanced snow load capability Reduced structural flex and vibration Stronger anchoring and foundation stability |  Oversized Structural Beams The enlarged beam profile provides: Increased span capability Greater rigidity under load Improved drainage integration Fully concealed motor housing Cleaner architectural lines This is not a light-duty patio cover — it is a structural outdoor system. |  Blade Diversion Drainage Technology™Dual-Flow Rain Management System Most louvered pergolas rely solely on internal blade channels to collect rainwater.LouverX™ introduces a superior engineered solution. 80% Surface Diversion The concave aerodynamic blade profile directs approximately 80% of rainwater across the blade surface toward the integrated gutter system. 20% Channel Drainage Remaining water flows through the internal blade channel and into concealed beam gutters. |
|---|---|---|
 Integrated LED Lighting System Built-in LED light strips:Warm and cold light on blades;RGB Color on beams&posts. Fully concealed wiring Ideal for evening entertaining |  Precision Smart Louver Control 0°–120° Adjustable Blade Rotation LouverX™ gives you complete environmental control. 0° Fully closed for rain protection Partial tilt for ventilation during light showers 120° fully open for maximum sunlight The extended 120° range offers greater airflow and sun exposure than typical 90° systems. |  Four colours option: Matte black, Matte dark grey, Matte coffee, Matte white. |
Designed for Four-Season Performance,LouverX™ is ideal for:
Backyard patios,Luxury residential builds,Outdoor kitchens,Poolside installations
Rooftop terraces,Restaurant patios,Commercial outdoor spaces,Multi-unit developments.
Powder-coated architectural aluminum ensures long-term corrosion resistance and durability.
